Place of Origin:
China
Brand Name:
ENMESI
Certification:
CE,ROHS,FCC
Model Number:
R6
Full-HD 1920x1080 OLED Display Small Size High Resolution 0.7 Inch Micro Display Module For Head Mounted Display
Micro Display technology is a branch of the Display technology field. Although the word "micro-display" has been proposed in recent years, display devices with the characteristics of "micro-display" have long appeared. The original display device with the characteristics of "micro-display" is the helmet suspension micro-CRT with an optical amplification device. As the market evolves, display devices require alternatives to CRT with smaller, lighter, and less power consumption.
In recent years, researchers have developed a number of different micro-display products to meet the requirements of the market. Micro-display module, which can be divided into monocular and binocular, providing high definition display to meet the military quality.
Product Description

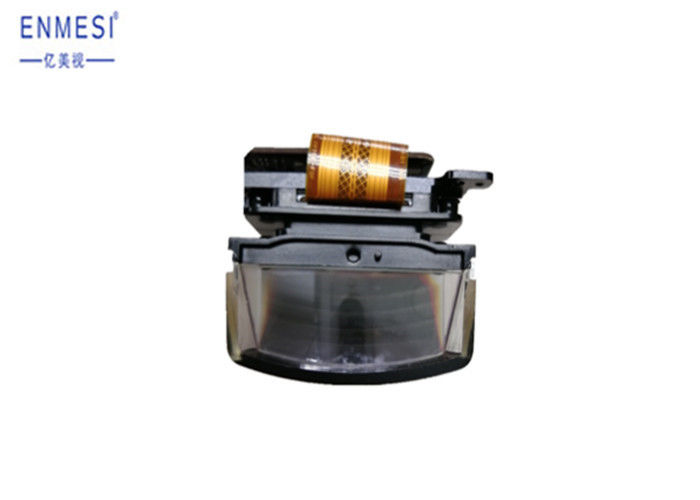

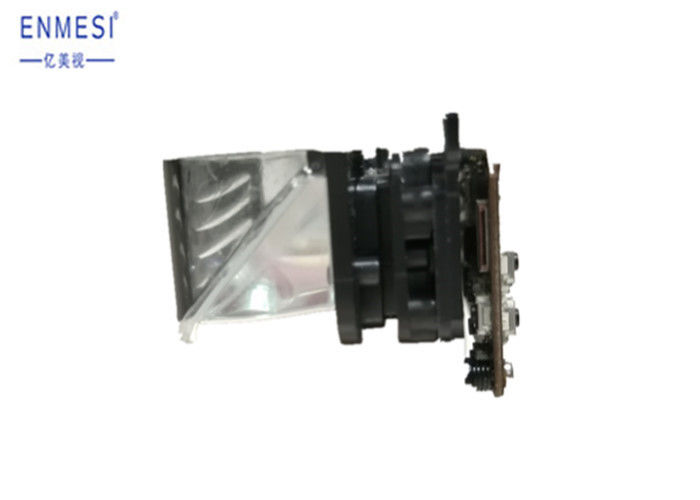

The micro display module is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. .
Product details
Product model | R6 |
Screen size | 0.7" |
Resolution | 1920&1080 |
Material | OLED |
FOV | 51° |
Eyerelief | 15mm |
Eyebox | 8mm |
Distortion | 1.42% |
Frame Rate | 60Hz |
Number of colors | 24bit (16777K) |
MTF | 0.15@30lp/mm |
Size | 18.5mm*20.3mm |
Weigh | 14g |
Product features
◆ Small size and high resolution type 0.70 display
◆ Effective dots: 1920 (RGB)×1080 = 6.22 M dots
◆ Ultra high contrast
◆ Wide color gamut
◆ Fast response speed
◆ Thin and light in weight
◆ Power saving (PS) function
◆ Scan direction selection, up or down and right or left.
◆ Orbit supported
◆ Wide range of use temperatures.
◆ Uniform picture quality.
◆ Image stability.
Applications
military helmet display, military display kit, portable night vision device, medical equipment framing, infrared thermal imager framing, laser sight imaging, soldier night vision system, game helmet, intelligent robot framing, computing imaging, distance education, FPV goggles, AV/VR smart glasses, head mounted display, video glasses, head up display etc.
