1080P FHD 0.7 Inch Binocular For Wearable Devices, OLED Micro Display Module

1080P FHD 0.7 Inch Binocular For Wearable Devices, OLED Micro Display Module
Features Gallery Product Description Request A Quote
Resolution: 1920*1080
HDMI: Can Be Customized
Material: OLED
Size: 0.7"
Quantity: 2 Screens
Current: <200mA
High Light:

amoled display module


micro oled display module

Basic Infomation
Place of Origin: CHINA
Brand Name: ENMESI
Certification: CE,FCC,ROHS
Model Number: R8
Payment & Shipping Terms
Packaging Details: gift box
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, etc
Supply Ability: 5000pcs/month
Product Description

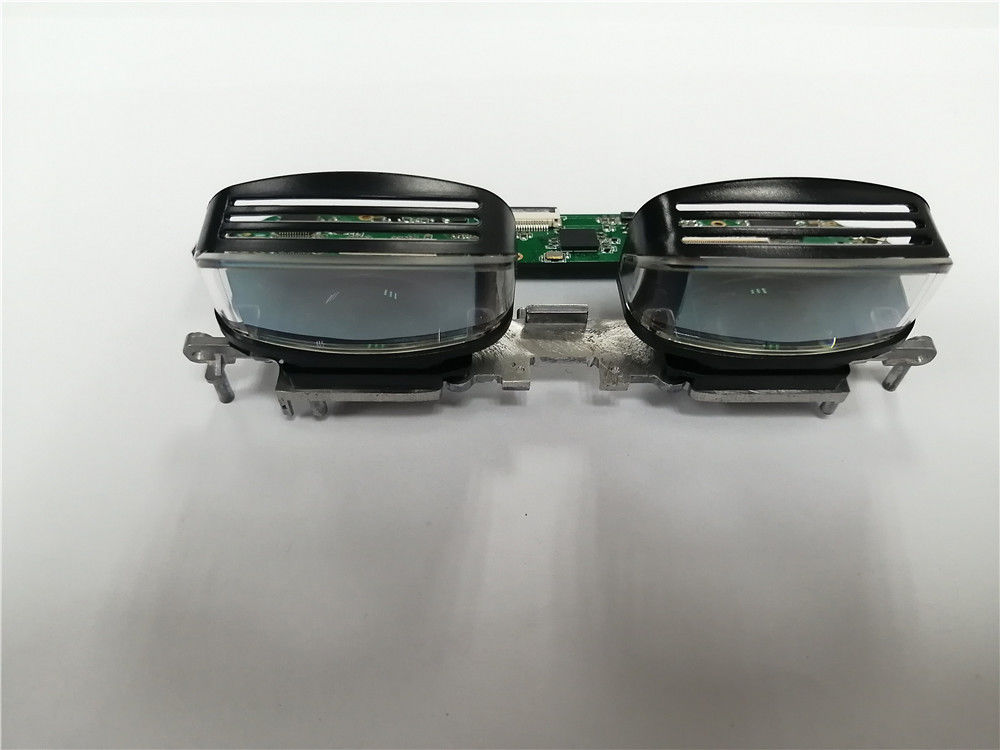

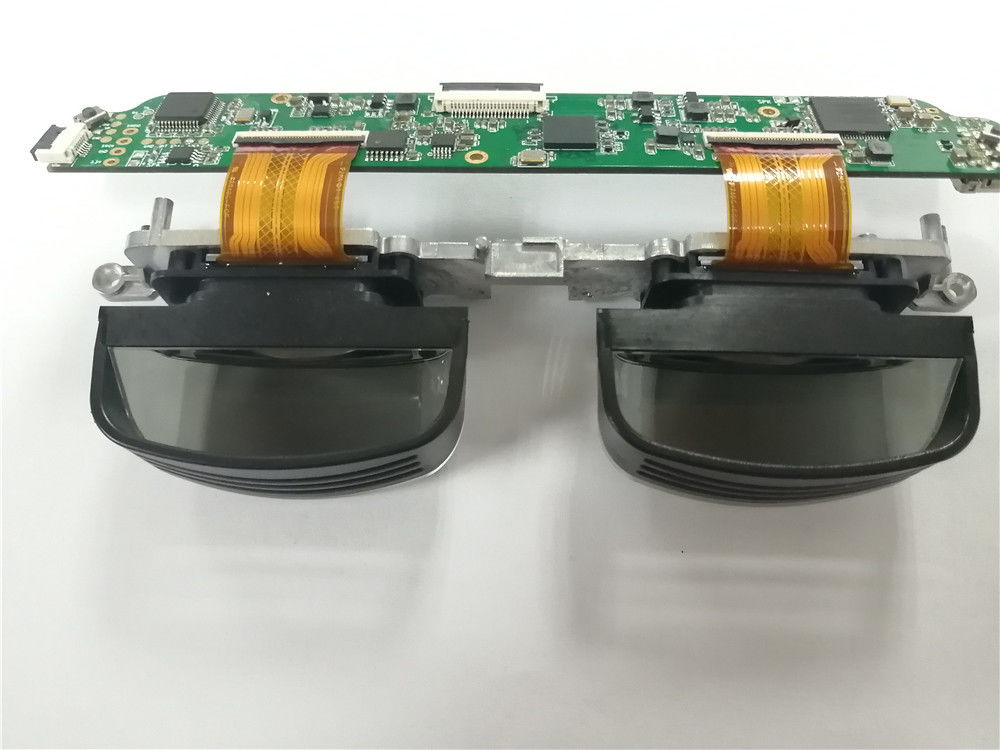

1080P Full HD 0.7 Inch Binocular 2 Screens For Wearable Devices HUD OLED Micro Display Module



    Micro Display technology is a branch of the Display technology field. Although the word "micro-display" has been proposed in recent years, display devices with the characteristics of "micro-display" have long appeared. The original display device with the characteristics of "micro-display" is the helmet suspension micro-CRT with an optical amplification device. As the market evolves, display devices require alternatives to CRT with smaller, lighter, and less power consumption.
In recent years, researchers have developed a number of different micro-display products to meet the requirements of the market. Micro-display module, which can be divided into monocular and binocular, providing high definition display to meet the military quality.




Product Details:


HDMI Can be customized
Resolution Full-HD  1920*1080
Display Material OLED
Screen Size 0.7"
FOV 51°
Quantity 2 screens
Frame Rate 60Hz
Number of colors 24bit (16777K)
Supply voltage +5VDC
Current <200mA
Number of pairs 24bit (16777K)
Size 37mm * 33mm
Weight 16g



Product Features:


◆ Small size and high resolution type 0.70 display.


◆ Effective dots: 1920 (RGB)×1080 = 6.22 M dots.


◆ Ultra high contrast.


◆ Wide color gamut.


◆ Fast response speed.


◆ Thin and light in weight.


◆ Power saving (PS) function.


◆ Scan direction selection, up or down and right or left.


◆ Orbit supported.


◆ Thin thickness.


◆ Wide range of use temperatures.


◆ Uniform picture quality.


◆ Easier to colorization.


◆ Image stability.





● The micro-display module is mainly designed for the application of video glasses (eye-wearing, goggles,

helmet-type observation system), game helmets, electronic viewfinder (EVF) devices and other products.


● industrial Medical video display: Human and computer Imaging engineering research, dental clinic use,

medical X-ray image, geological marine exploration and use, Scientific institutions of higher learning use.


● Military use: Military video (sight), multifunctional individual helmet system (individual Combat Command

System), Individual night vision system, life detection video device, infrared night vision instrument, Infrared

Thermal Imager, security monitoring and other devices (high-definition panchromatic remote observer, can

be connected with a variety of monitoring or thermal camera systems).





1080P FHD 0.7 Inch Binocular For Wearable Devices, OLED Micro Display Module 0





Tag: amoled display module,flexible oled display module, optical oled display module, full hd display.
