Full HD Binocular Flexible OLED Display Module 0.7" Screen For Video Glasses

flexible oled display module

micro oled display module

Place of Origin:

CHINA

Brand Name:

ENMESI

Certification:

CE, ROHS, FCC

Model Number:

Request A Quote

Full HD Binocular Flexible OLED Display Module 0.7

Product Details

Screen Size:

0.7"

Resolution:

1920&1080

Refresh Rate:

60HZ

Material:

OLED

Number Of Colors:

:24bit (16777K)

Number Of Pairs:

Clk: 2pairs

Payment & Shipping Terms

Minimum Order Quantity

200pcs

Price

Negotiable

Packaging Details

gfit box

Delivery Time

3-7 working days

Payment Terms

T/T, etc

Supply Ability

50000pcs/month

China Near Eye Optical Waveguide Micro Display Module 0.39" 40° FOV With LCOS Screen

Get Best Price

Full HD Binocular Flexible OLED Display Module 0.7" Screen For Video Glasses

Get Best Price

TYPE-C AR Display 1920 * 1080 OLED Birdbath Micro Display Module For HUD

Get Best Price

0.49 Inch 41 Degrees FOV OLED Micro Display Module 1920 * 1080 Resolution

Get Best Price

+8615920098738

vinan@enmesi.com

Contact Now

Product Description

0.7" Binocular OLED Micro Display Module with Full HD for Video Glasses

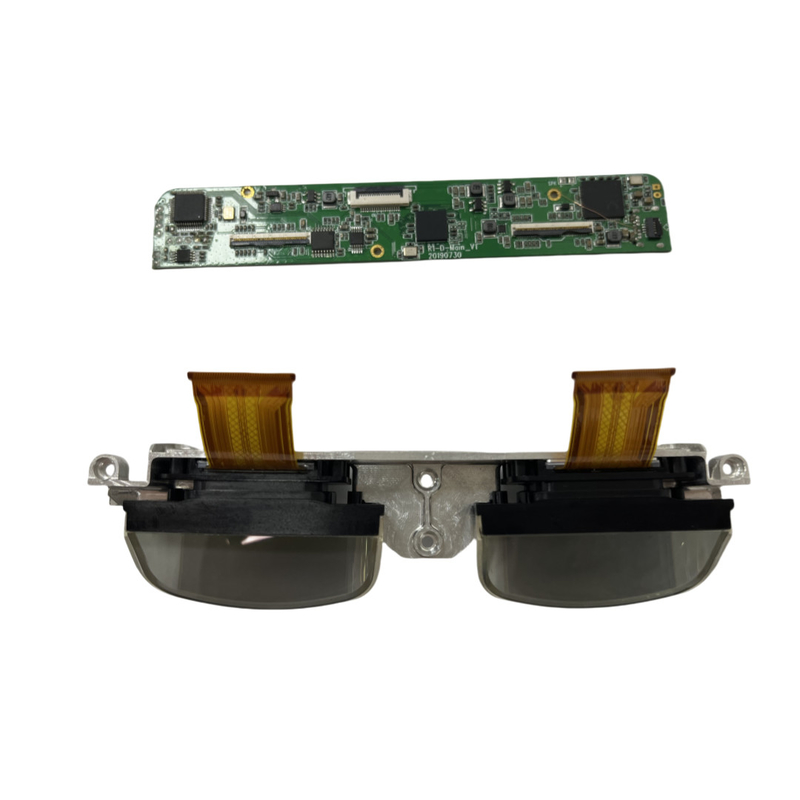

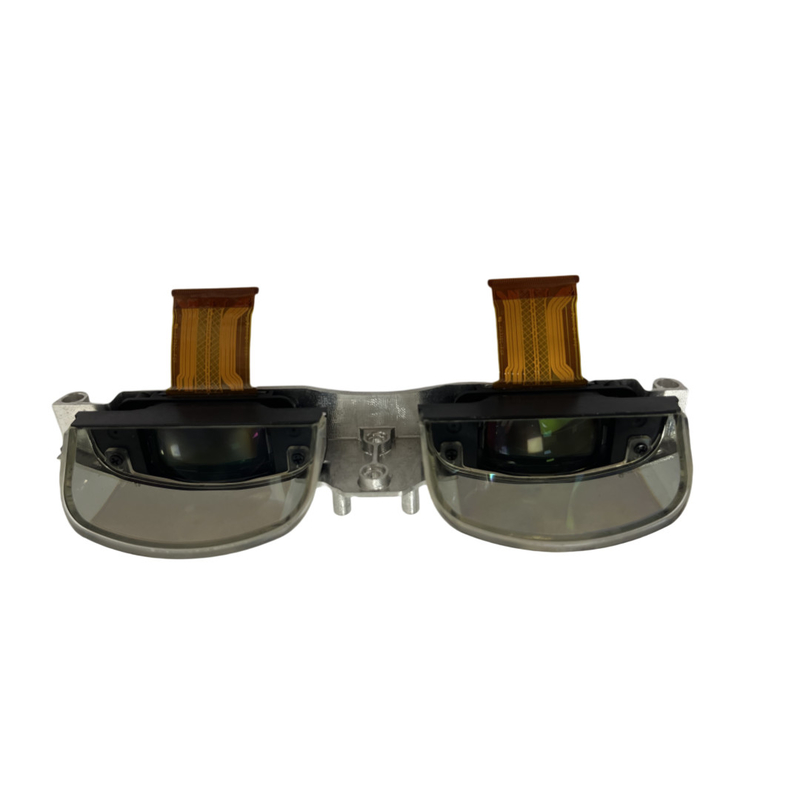

This is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. .

There are many protential applications for the micro display module: military helmet display, military display kit, portable night vision device, medical equipment framing, infrared thermal imager framing, laser sight imaging, soldier night vision system, game helmet, intelligent robot framing, computing imaging, distance education, FPV glasses, AV/VR smart glasses, etc.

Product Details:

HDMI	can be customized
Resolution	1920*1080
Display Material	OLED
Screen Size	0.7"
Quantity	2 screens
Supply voltage	+5VDC
Current	<200mA
Size	37mm * 33mm
Weight	16g

Features:

◆ Low power consumption

◆ Wide operating temperature range

◆ High contrast.

◆ Ultra high contrast

◆ Wide color gamut

◆ Fast response speed

◆ Thin and light in weight

◆ Power saving (PS) function

◆ Scan direction selection, up or down and right or left.

◆ Orbit supported

Application

In-vehicle display

It can provide clearer and more delicate display effects, improving the safety and comfort of drivers.

VR/AR devices

It can provide higher pixel density and resolution, bringing users a more immersive virtual experience.
