Smart Glasses Overall Solution
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ENMESI |
| Certification: | CE, ROHS, FCC |
| Model Number: | R8 |
| Minimum Order Quantity: | 200pcs |
| Price: | Negotiable |
| Packaging Details: | gfit box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union, etc. |
| Supply Ability: | 5000pcs/month |
| Screen Size: | 0.7" | Resolution: | 1920&1080 |
|---|---|---|---|
| Refresh Rate: | 60HZ | Material: | OLED |
| Number Of Colors: | :24bit (16777K) | Number Of Pairs: | Clk: 2pairs |
| High Light: | flexible oled display module,micro oled display module,Full HD Binocular Micro Display Module |
||

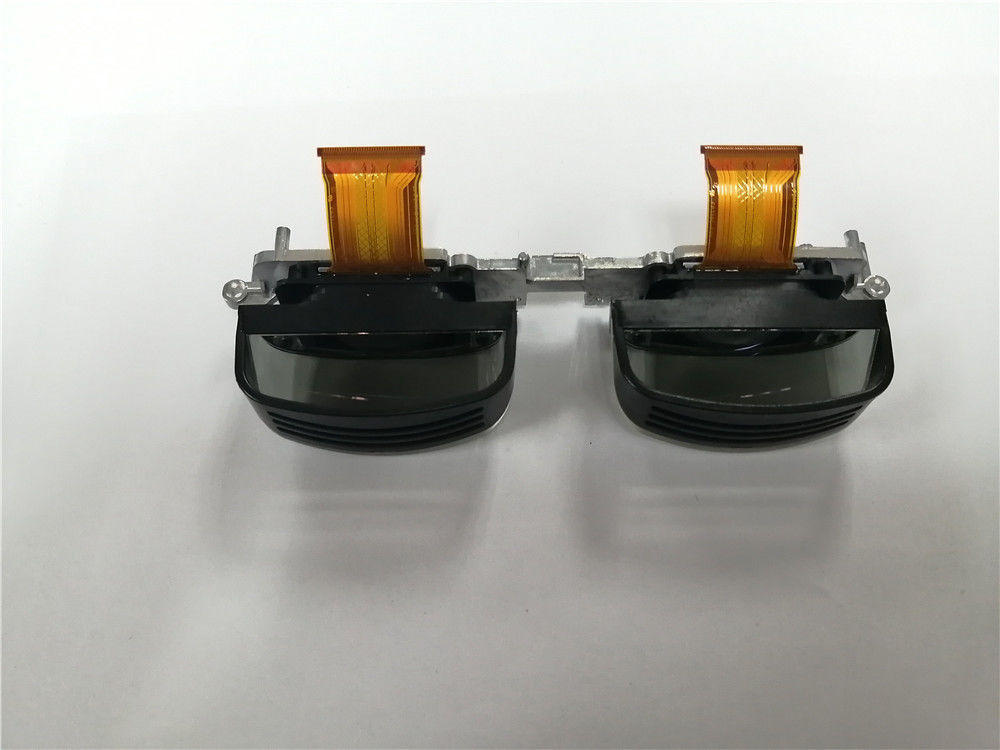

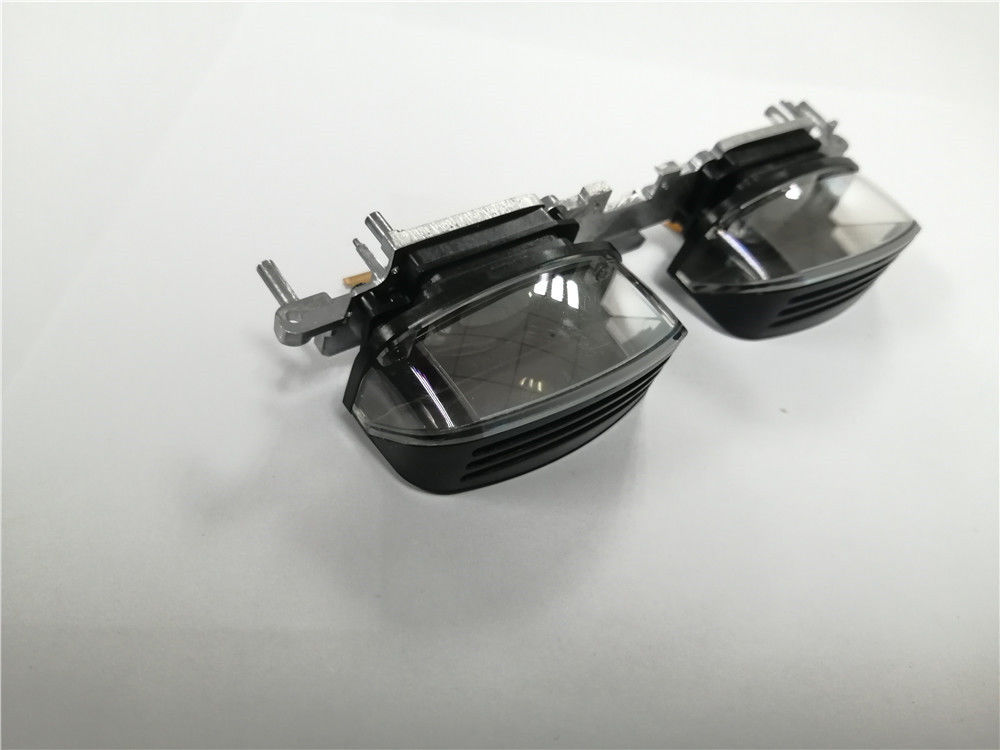

0.7" Binocular OLED Micro Display Module with Full HD for Video Glasses
This is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. .
There are many protential applications for the micro display module: military helmet display, military display kit, portable night vision device, medical equipment framing, infrared thermal imager framing, laser sight imaging, soldier night vision system, game helmet, intelligent robot framing, computing imaging, distance education, FPV glasses, AV/VR smart glasses, etc.
Product Details:
| HDMI | can be customized |
| Resolution | 1920*1080 |
| Display Material | OLED |
| Screen Size | 0.7" |
| Quantity | 2 screens |
| Supply voltage | +5VDC |
| Current | <200mA |
| Size | 37mm * 33mm |
| Weight | 16g |
Features:
◆ Small size and high resolution type 0.70 display
◆ Effective dots: 1920 (RGB)×1080 = 6.22 M dots
◆ Ultra high contrast
◆ Wide color gamut
◆ Fast response speed
◆ Thin and light in weight
◆ Power saving (PS) function
◆ Scan direction selection, up or down and right or left.
◆ Orbit supported
Module Structure
Active matrix color OLED display with on-chip driver based on single crystal silicon transistors
