LCOS Waveguide Micro Display Module with 120Hz Refresh Rate 40° FOV and 1920x1080 Resolution

LCOS micro display module 120Hz

waveguide micro display module 40° FOV

micro display module LVDS 1920x1080

Place of Origin:

CHINA

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC,CCC

Model Number:

Request A Quote

LCOS Waveguide Micro Display Module with 120Hz Refresh Rate 40° FOV and 1920x1080 Resolution

Product Details

Display Technology:

Waveguide

Display Resolution:

1920X1080

Display Type:

LCOS

FOV:

40°

Refresh Rate:

120HZ

Lens Transmittance:

＞85%

Payment & Shipping Terms

Minimum Order Quantity

50pcs

Price

Negotiable

Packaging Details

Gift box

Delivery Time

3-7 work days

Payment Terms

T/T,Western Union,etc

Supply Ability

5000pcs/month

High Resolution 1080P 0.7 Inch OLED Micro Display Module with Binocular View

Get Best Price

LCOS Waveguide Micro Display Module with 1920x1080 Resolution 40° FOV and 120Hz Refresh Rate

Get Best Price

0.37 Inch LCOS Micro Display Module with 1920x1080 Resolution 40° FOV and 120Hz Refresh Rate for AR VR Applications

Get Best Price

Near Eye 0.37 Inch 1920 * 1080 *2 Waveguide Micro Display Module With TYPE C

Get Best Price

86-15016998664

longyuanyuan@enmesi.com

Contact Now

Product Description

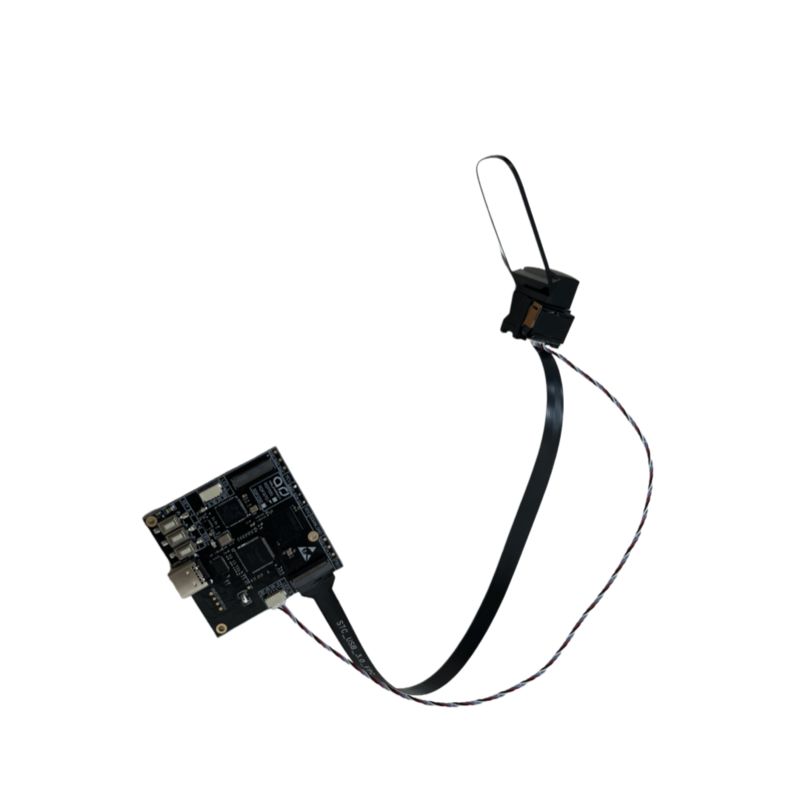

LCOS 120HZ 40° FOV 1920 * 1080 Waveguide Micro Display Module With LVDS

Product Introduction

This display module is a side-illuminated optical waveguide module produced using the industry's unique molecular bonding process. Its excellent display effect and lightweight appearance can be perfectly adapted to various AR smart output terminals. Compared with similar products on the market, this product not only has smaller and lighter modules, but also delivers superior display performance under the same power consumption and display chip conditions.

Product Specifications

Display Technology	Waveguide
Display Size	0.37"
Display Type	LCOS
Display Brightness	>800 nits
Resolution	1920 × 1080
Waveguide Thickness	<1.5mm
FOV	40°
Eyebox	9 × 6 mm
Eye Relief	18mm
Transmittance Rate	>85%
Frame Rate	120Hz

Product Features

Small size display with full high definition: 0.37 inch 1920×1080 LCOS micro display
High contrast: 200:1
High transmittance rate: >85%
Wide range of color reproduction
Using optical waveguide technology

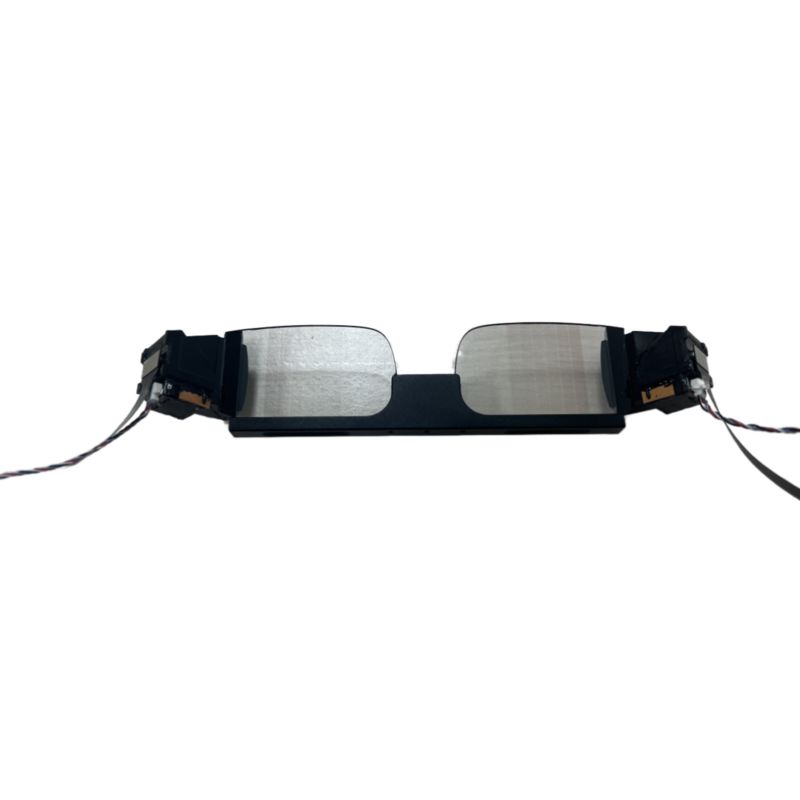

Available in monocular and binocular configurations

Applications

Primarily used for augmented reality virtual near-eye display applications. This penetrating auxiliary information display equipment is suitable for military helmet displays, military display kits, portable night vision devices, medical equipment framing, infrared thermal imager framing, laser sight imaging, soldier night vision systems, game helmets, intelligent robot framing, computational imaging, distance education, FPV goggles, AR/VR smart glasses, head-mounted displays, video glasses, and head-up displays.

Waveguide LCOS screen LED lighting module Micro Display Module
