40 Degree FOV 0.39" LCoS MIPI Interface Micro Display Module For AR & HUD

LCoS MIPI Micro Display Module

40 Degree FOV Micro Display Module

0.39" Monocular 1080P LCD Module

Place of Origin:

CHINA

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC,CCC

Model Number:

Request A Quote

Product Details

Display Technology:

Waveguide

Virtula Screen Size:

86”(3M)

Resolution:

1080P (1920X1080)

LCOS Screen Size:

0.39"

FOV:

40°

Pupil Distance:

18mm

Payment & Shipping Terms

Minimum Order Quantity

50pcs

Price

Negotiable

Packaging Details

Gift box

Delivery Time

3-7 work days

Payment Terms

Western Union, T/T, etc

Supply Ability

5000pcs/month

China Near Eye Optical Waveguide Micro Display Module 0.39" 40° FOV With LCOS Screen

Get Best Price

Full HD Binocular Flexible OLED Display Module 0.7" Screen For Video Glasses

Get Best Price

TYPE-C AR Display 1920 * 1080 OLED Birdbath Micro Display Module For HUD

Get Best Price

0.49 Inch 41 Degrees FOV OLED Micro Display Module 1920 * 1080 Resolution

Get Best Price

86-15016998664

longyuanyuan@enmesi.com

Contact Now

Product Description

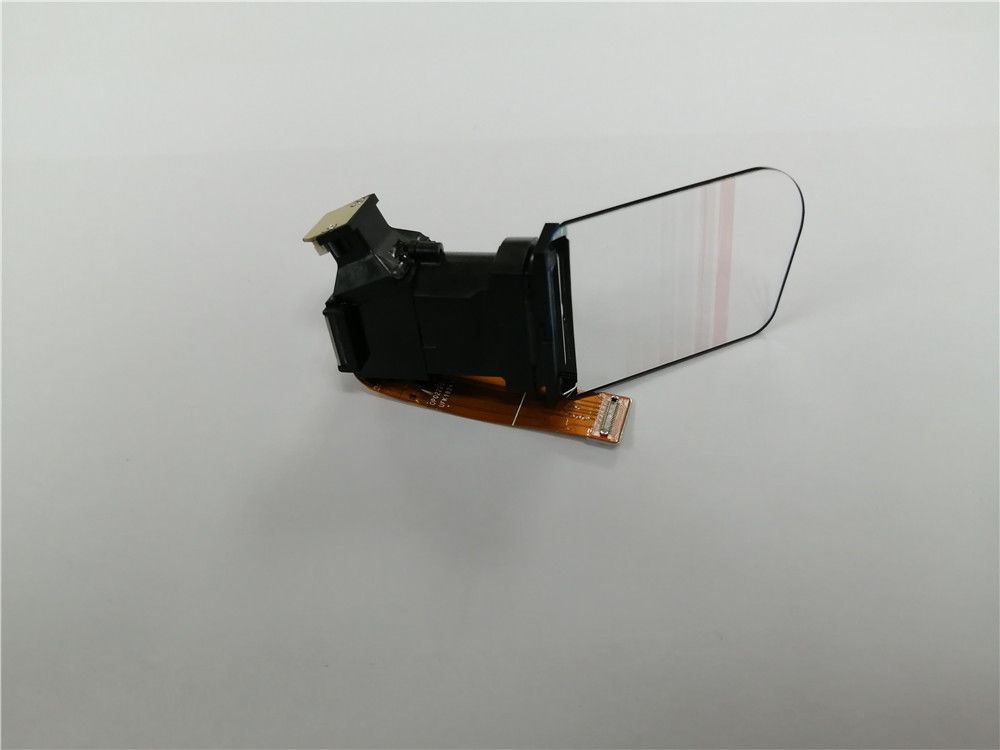

Monocular 1080P 0.39" LCoS MIPI Micro Display Module 40 Degree FOV

Optical Module Details

Display Technology	Waveguide
Virtula Screen Size	86"(3M)
Resolution	1920X1080
Waveguide Thickness	1.5mm
FOV	40°
Pupil Distance	18mm
Transmittance Rate	＞82%
LCOS Screen Size	0.39"
Frame Rate	60Hz

LCOS Screen Details

Display Type	Reflective type LCOS(Liquid Crystal on Silicon)
Size	0.39"
Resolution	1920X1080
Frame Rate	60Hz
Interface Mode	MIPI
Contrast	200:1
Power	350mW
Grey Stage	256
Debugging Method	12C interface debugging

Features

Small size
Large field of view
High resolution
Clear picture quality
MIPI interface
Using optical waveguide technology
Have binocular and monocular

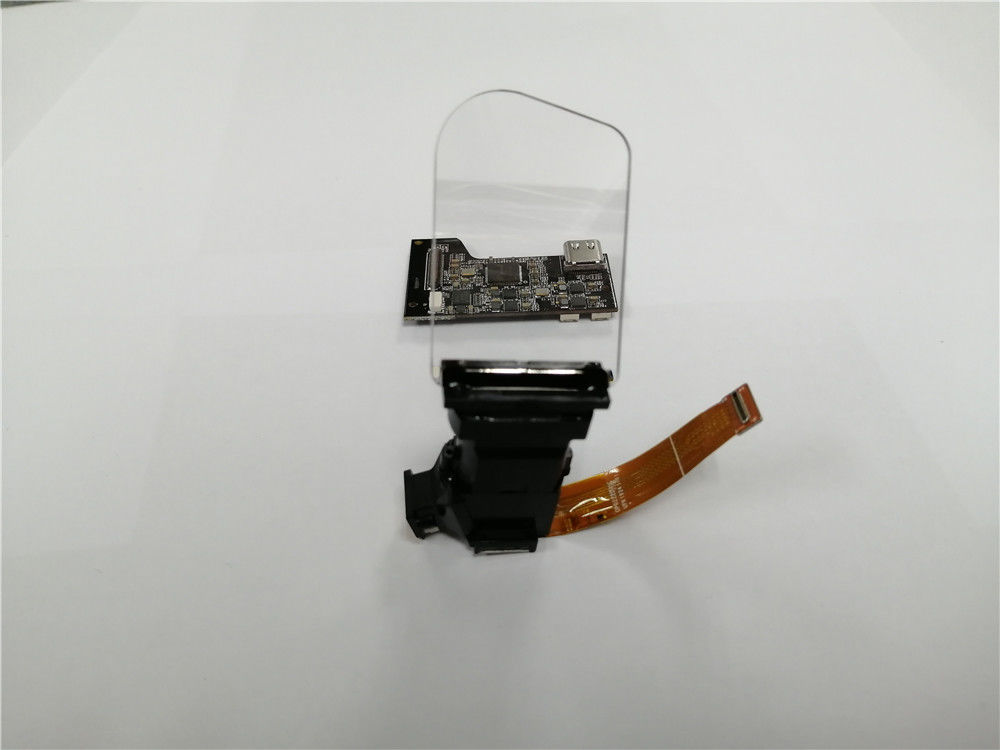

Have driver board
Plug and play

Applications

Mainly used to enhance the reality of virtual near-eye display, is a penetrating auxiliary information display equipment, military helmet display, military display kit, portable night vision device, medical equipment framing, infrared thermal imager framing, laser sight imaging, soldier night vision system, game helmet, intelligent robot framing, computing imaging, distance education, FPV goggles, AV/VR smart glasses, head mounted display, video glasses, head up display,smart motorcycle helmet etc.

Our services

Samples can be sent out very soon.
Different models for your reference.
We provide perfect solution for customers according to your requirement such as the size, the color of the frame.
We can open new mold for your own design.logo,frame.etc
Your inquiry related to our products or prices will be replied in 24 hours.
We will protect your sales area, idea of design and all your private info.
For our modules,we have 1 year warrenty.
Small order is welcome.
