Place of Origin:
Shenzhen,China
Brand Name:
ENMESI
Certification:
CE,FCC,ROHS,CCC
Model Number:
R8

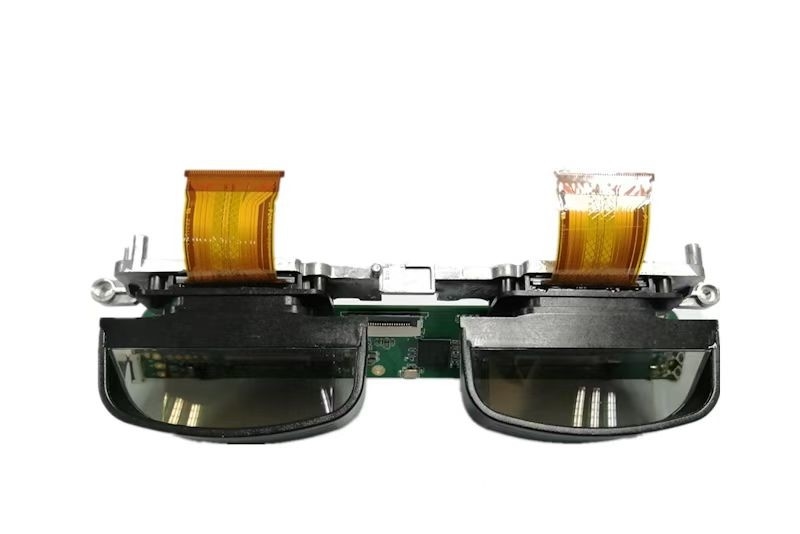

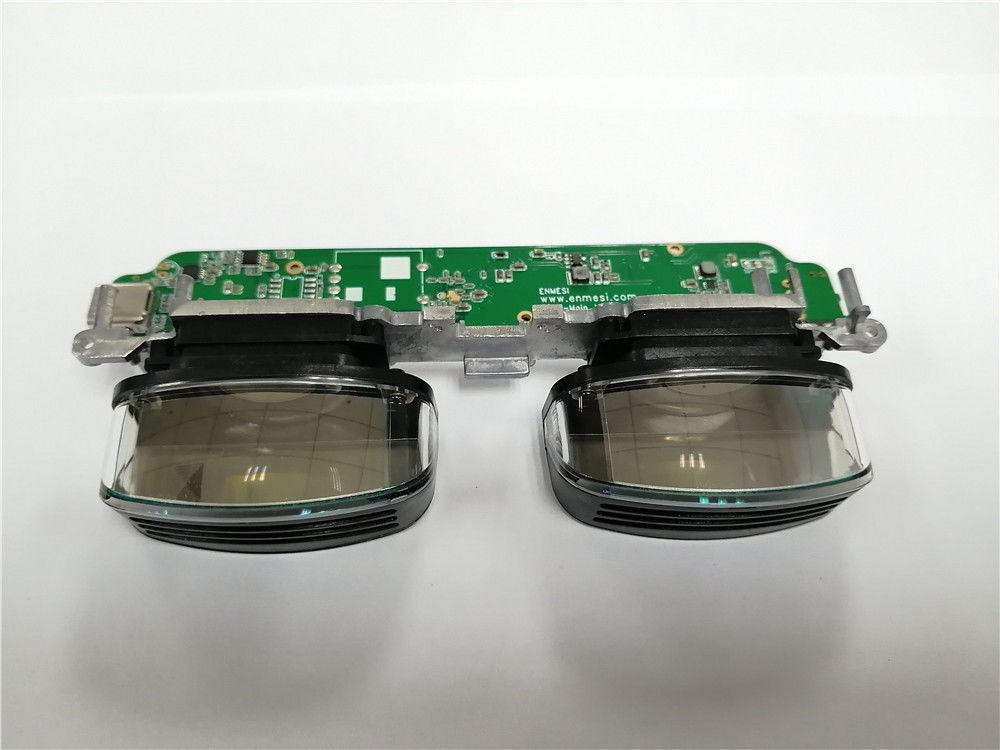

Sony OLED Display Binocular High Resolution 1920* 1080*2 Micro Display Module
Micro Display technology is a branch of display technology. Although the term "micro-display" has been suggested in recent years, display devices with "micro-display" features have long emerged. The original display device with the "micro-display" feature is the helmet suspension micro-CRT with an optical amplification device. As the market evolves, display devices need smaller, lighter, and lower- power CRT alternatives.
In recent years, researchers have developed a number of different micro-display products to meet the requirements of the market. Micro-display module, which can be divided into monocular and binocular, providing high definition display to meet the military quality.
Product Details
| Resolution | Full-HD 1920*1080 |
| Display Material | OLED |
| Screen Size | 0.7" |
| Quantity | 2 screens, binocular |
| FOV | 51° |
| Pupil distance | 63mm(Fixed pupil distance) |
| Eye relief | 15mm |
| Exit pupil | 8mm |
| Brightness | 3000 nits |
| Distortion | 0.76% (Pincushion distortion) |
| Frame Rate | 60Hz |
| Number of colors | 24bit (16777K) |
| Supply voltage | +5VDC |
| Current | <200mA |
| Number of pairs | 24bit (16777K) |
| Size | 37mm * 33mm |
| Weight | 9.5g |
Product features
