Sony 335S 0.7 Inch 51° FOV Full HD OLED Micro Display Module For AR & VR Helmet

Sony 335S 0.7 Inch 51° FOV Full HD OLED Micro Display Module For AR & VR Helmet

amoled display module

flexible oled display module

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
OLED Technology
Exit Pupil:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
gift box
Delivery Time
7 work days
Payment Terms
T/T, Western Union etc
Supply Ability
Product Description

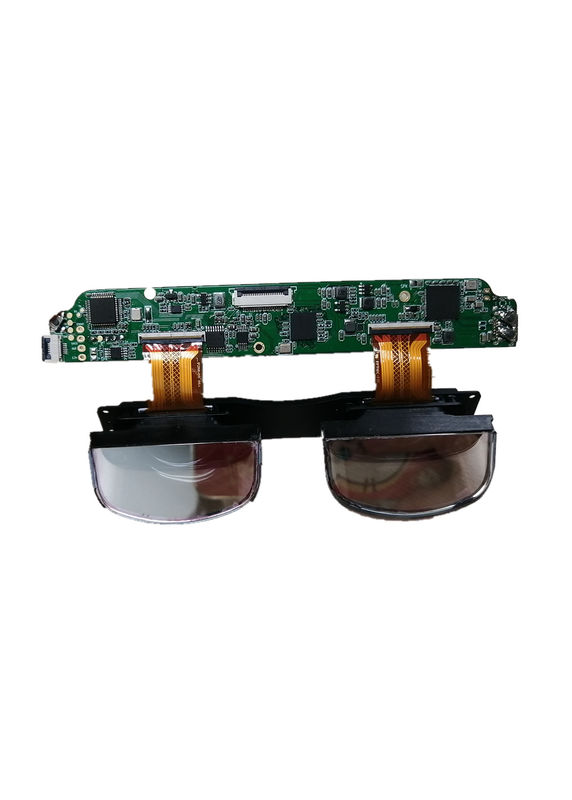

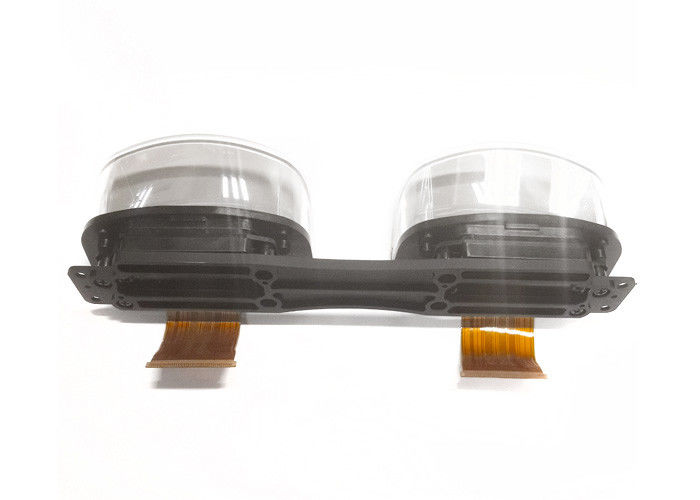

Binocular 0.7 Inch Sony High Brightness Full HD Micro Display Modules For AR Helmet



0.7 inch 1920*1080 (Full HD) Organic Light Emitting Display (OLED ) micro display module


Image Restore: Up/ Down and Left/ Right


Applications: Consumer Electronics/ Industrial/ Security / Education / Medical Devices /Entertainment,etc




Company advantages:

  • Accept small MOQs
  • Competitive prices and short lead times
  • OLED display modules,LCOS display modules,TFT LCD display modules,PCB drive board solution.



Product Details


Resolution Full-HD 1920*1080
Display Material OLED
Screen Size 0.7"
Quantity 2 screens
FOV 51°
Pupil distance 63mm(Fixed pupil distance)
Eye relief 15mm
Exit pupil 8mm
Brightness 3000 nits
Distortion 0.76% (Pincushion distortion)
Frame Rate 60Hz
Number of colors 24bit (16777K)
Supply voltage +5VDC
Current <200mA
Number of pairs 24bit (16777K)
Size 37mm * 33mm
Weight 9.5g




Product Description


ECX335SN is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution.



Product Features


  • Fast response time

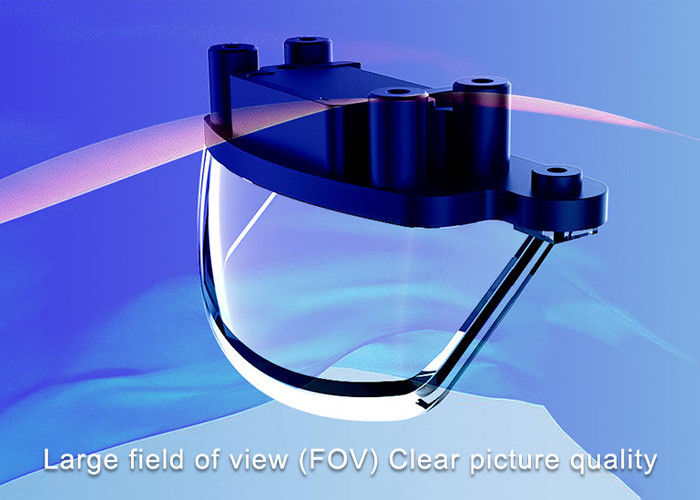

  • Large FOV: 51°
  • Thin designs
  • Self-illuminated; no backlight necessary, Organic Light Emitting Display Technology.
  • Low power consumption
  • High brightness: 3000nits
  • High contrast ratio
  • Wide operarion temperature
  • Drive board:TYPE-C interface




Q1: What is the minimum order quantity?


A1: Generally if you choose the different products, our minimum order quantity also will be different.


Q2. What about the delivery time?


A2:The delivery time of the sample is 3-7 working days.


Q3. Does your product have any warranty?


A3:Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.


Q4. Whats your shipping method?


A4:We provide comprehensive shipping methods. Display
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyers cargo agent in China, we can also ship by Air transportation or sea transportation.

Q5. Do you offer custom solution?

A5:Yes,we can offer custom solution if standard products couldnt meet buyer requirements.
