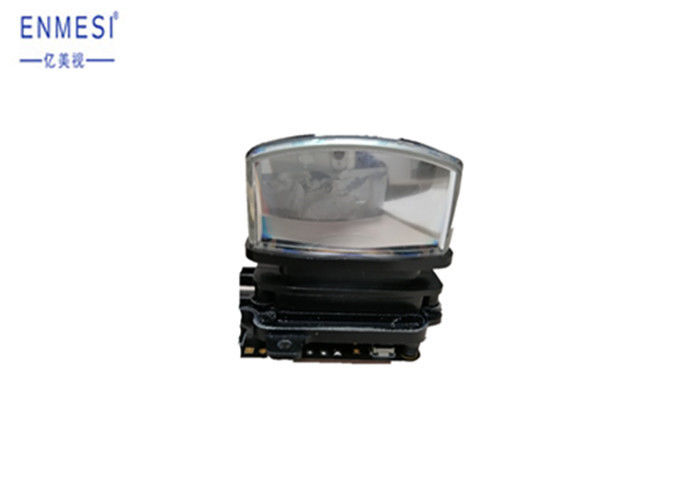

Small Size 0.7 Inch Large FOV Light Weight OLED Display , Organic Light Emitting Display Micro Display Module
Micro Display technology is a branch of the Display technology field. Although the word "micro-display" has been proposed in recent years, display devices with the characteristics of "micro-display" have long appeared. The original display device with the characteristics of "micro-display" is the helmet suspension micro-CRT with an optical amplification device. As the market evolves, display devices require alternatives to CRT with smaller, lighter, and less power consumption.
In recent years, researchers have developed a number of different micro-display products to meet the requirements of the market. Micro-display module, which can be divided into monocular and binocular, providing high definition display to meet the military quality.
Product details
| Product model | R6 |
| Screen size | 0.7" |
| Resolution | 1920&1080 |
| Material | OLED |
| FOV | 51° |
| Eyerelief | 15mm |
| Eyebox | 8mm |
| Distortion | 1.42% |
| Frame Rate | 60Hz |
| Number of colors | 24bit (16777K) |
| MTF | 0.15@30lp/mm |
| Size | 18.5mm*20.3mm |
| Weigh | 14g |
Product advantages
a. Clarity:Coaxial optical design with symmetrical optical design with a full frame of high sharpness.
b. Weight:The use of hollow structure design,material selection using resin materials,the scheme does not need optical compensation,so do not need to compensate for optical so the total volume will be small.
c. FOV:45°.
d. Volume:There is a short plate at the latitude of the thickness compared to the optical waveguide.
e. Process:Injection molding and coating.
Product Description
The micro display module is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. .
Applications
military helmet display, military display kit, portable night vision device, medical equipment framing, infrared thermal imager framing, laser sight imaging, soldier night vision system, game helmet, intelligent robot framing, computing imaging, distance education, FPV goggles, AV/VR smart glasses, head mounted display, video glasses, head up display etc.
