Sony 0.7 Inch 3000nits Oled 1080P HDMI Micro Display Module

Sony 0.7 Inch 3000nits Oled 1080P HDMI Micro Display Module

3000nits Oled Display Module

Sony ECX335SN Oled Display Module

0.7 Inch USB-C Display Module

Place of Origin:

CHINA

Brand Name:

ENMESI

Certification:

CE,FCC,ROHS

Model Number:

R6

Contact Us
Request A Quote
Product Details
Display Model:
Sony ECX335SN-6
Resolution:
1920*1080
Brightness:
3000nits
Eyerelief:
15mm
Eyebox:
8mm
MTF:
0.15@30lp/mm
Payment & Shipping Terms
Minimum Order Quantity
200pcs
Price
Negotiable
Packaging Details
gift box
Delivery Time
3-7 work days
Payment Terms
T/T, Western Union etc
Supply Ability
5000pcs/month
Product Description

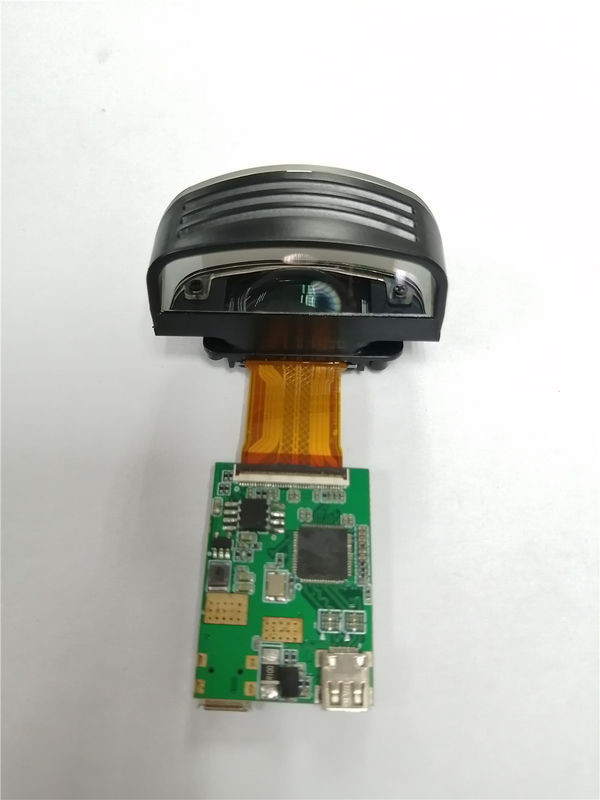

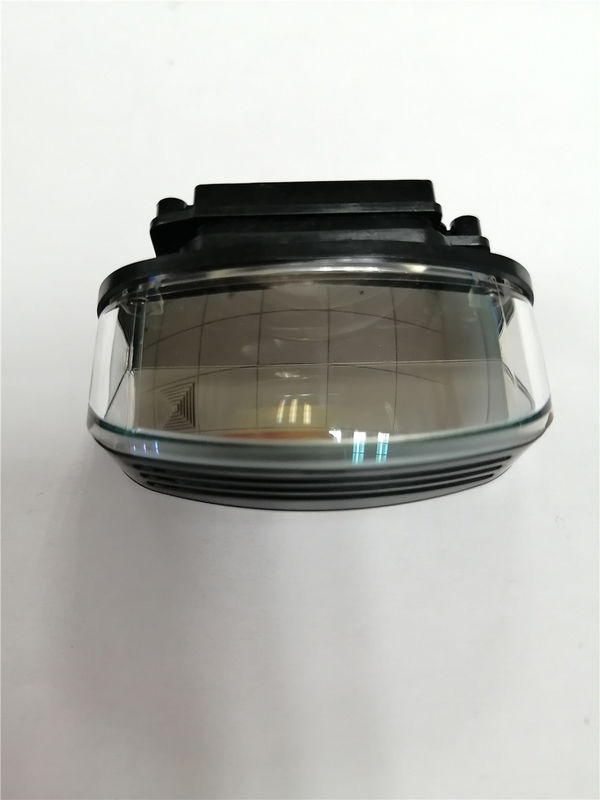

Sony ECX335SN 0.7 Inch 3000 Nits Oled Display USB-C Micro Display Module







Product details



Product model R6
Screen size 0.7"
Resolution 1920&1080
Material OLED
FOV 51°
Eyerelief 15mm
Eyebox 8mm
Distortion 1.42%
MTF 0.15@30lp/mm
Size 18.5mm*20.3mm
Weigh 14g





Product features




  • Small size and high resolution type 0.70 display
  • Effective dots: 1920 (RGB)×1080 = 6.22 M dots
  • Ultra high contrast
  • Wide color gamut
  • Fast response speed
  • Thin and light in weight
  • Power saving (PS) function
  • Scan direction selection, up or down and right or left.
  • Orbit supported



Applications



● The micro-display module is mainly designed for the application of video glasses (eye-wearing, goggles,

helmet-type observation system), game helmets, electronic viewfinder (EVF) devices and other products.



● industrial Medical video display: Human and computer Imaging engineering research, dental clinic use,

medical X-ray image, geological marine exploration and use, Scientific institutions of higher learning use.



● Military use: Military video (sight), multifunctional individual helmet system (individual Combat Command

System), Individual night vision system, life detection video device, infrared night vision instrument, Infrared

Thermal Imager, security monitoring and other devices (high-definition panchromatic remote observer, can

be connected with a variety of monitoring or thermal camera systems).
