Binocular 720P 0.38 Inch LCoS Micro Display Module For AR / VR Glasses

Binocular 720P 0.38 Inch LCoS Micro Display Module For AR / VR Glasses

0.38 Inch LCOS Screen Module

720P LCOS Screen Module

VR Video Glasses Display Module

Place of Origin:

Shenzhen,CHINA

Brand Name:

ENMESI

Certification:

CE,FCC,ROHS,CCC

Model Number:

R4

Contact Us
Request A Quote
Product Details
Material:
LCOS
Resolution:
1280*720*2
FOV:
38°
Userge:
VR Glasses Etc
Screen Quantity:
Binocular
Eye Relief:
18mm
Payment & Shipping Terms
Minimum Order Quantity
200pcs
Price
Negotiable
Packaging Details
gift box
Delivery Time
7 work days
Payment Terms
T/T, Western Union etc.
Supply Ability
5000pcs/month
Product Description


720P LCOS Screen 0.38 Inch Micro Display Module For 3D VR Video Glasses







LCOS display system structure characteristics



The display system with LCOS display as its core, whether it is a large-screen projection system or a near-eye virtual micro display, its system structure can be divided into 4 parts: LCOS screen (including LCOS display chip),display controller,optical system and light source.



The last three parts are the servo structure of the LCOS screen, where the display controller converts the digital or analog signal that needs to be displayed into a digital signal that matches the display mode of the LCOS chip; the light source provides full-color light or red and green according to the specific color mode Time-series pulsed light of the three primary colors of blue; the optical system produces corresponding real or virtual images.




Product Details


Resolution 1280*720
Display Material LCOS (Liquid Crystal On Silicon)
Screen Size 0.38"
Quantity Binocular
FOV 38°
Pupil distance
58-68mm
Diopter(Adjustable)
-700°~700°
Exit Pupil
7mm
Eye Relief (Effective)
18mm




Product Features



  • It uses LCOS (Liquid Crystal On Silicon)technology.
  • 720P 1280*720 Resolution, Viewing without graininess, clear picture quality and vivid colors.
  • Large FOV : 38°
  • The user can adjust the interpupillary distance by yourself, and can adjust it to the most suitable state for viewing, and adjust it to have no vignetting, and the viewing is more comfortable.
  • The user can adjust the diopter, whether it is farsighted or nearsighted eyes, the adjustment range is -700°~ 700°
  • Suitable for all kinds of VR glasses and head-mounted displays

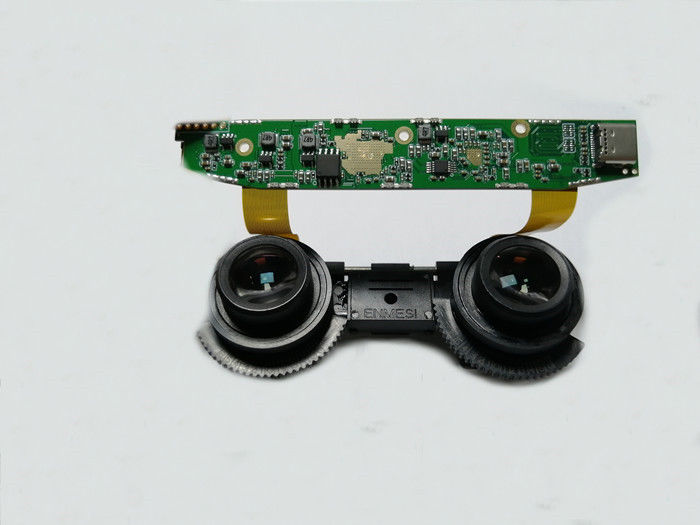

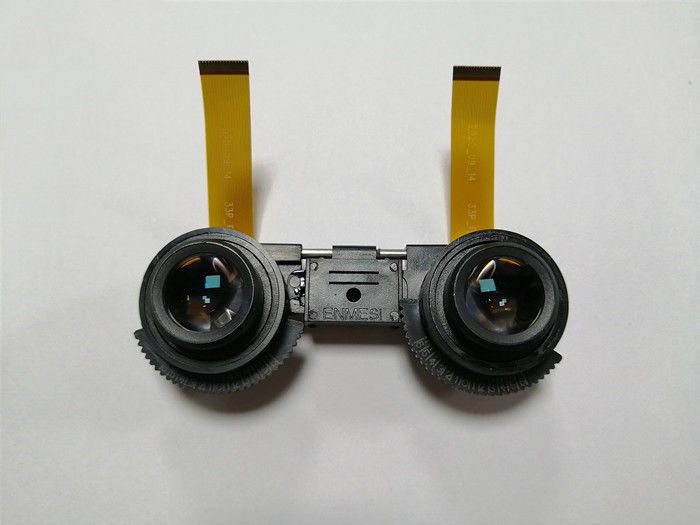

Binocular 720P 0.38 Inch LCoS Micro Display Module For AR / VR Glasses 0Binocular 720P 0.38 Inch LCoS Micro Display Module For AR / VR Glasses 1
