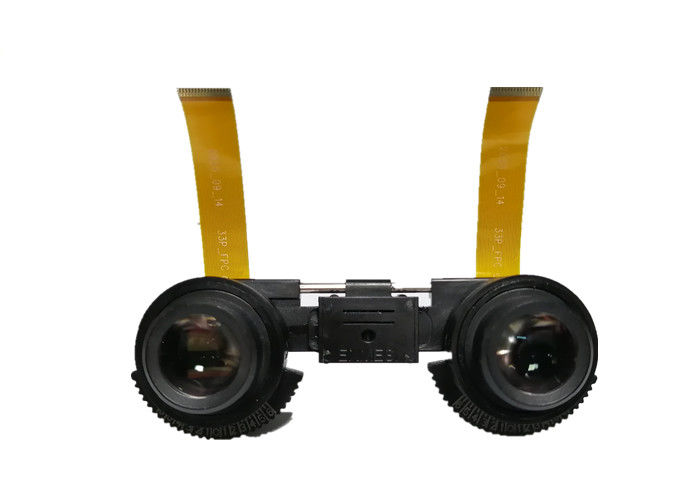

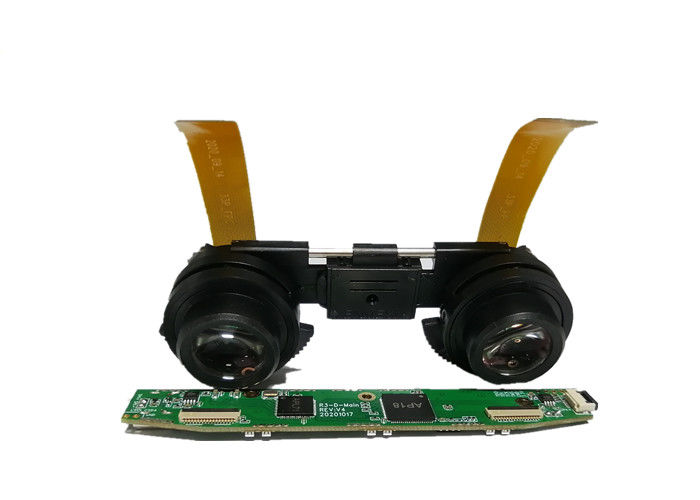

LCOS 0.38" Silicon Binocular Micro Display Module For VR Glasses

LCOS 0.38" Silicon Binocular Micro Display Module For VR Glasses

Silicon Binocular Micro Display Module

LCOS Micro Display Module

0.38" VR Glasses Display Module

Place of Origin:

Shenzhen,CHINA

Brand Name:

ENMESI

Certification:

CE,FCC,ROHS,CCC

Model Number:

R4

Contact Us
Request A Quote
Product Details
Material:
Liquid Crystal On Silicon
Resolution:
1280*720*2
FOV:
38°
Driver Board Interface:
TYPE-C
Screen Quantity:
Binocular
Diopter:
Yes
Payment & Shipping Terms
Minimum Order Quantity
200pcs
Price
Negotiable
Packaging Details
gift box
Delivery Time
7 work days
Payment Terms
T/T, Western Union etc
Supply Ability
5000pcs/month
Product Description


HD 0.38 Inch Liquid Crystal On Silicon Binocular Micro Display Module For VR Glasses







LCOS technology




The working principle of LCOS is to use the mirror on the back of the liquid crystal layer. After light comes in from the front, it is transmitted through the liquid crystal, reflected by the mirror, and then transmitted to the screen through the liquid crystal for the second time. This requires some slightly complex optics, but the effect is very good.



It has an obvious advantage: all the electronic components are behind the mirror, so they will not block the light. There is still a lot of space on the back, so it is possible to obtain extremely high resolution, and the equipment produced by LCOS technology already has the highest resolution among all display technologies. Therefore, the light is transmitted through the liquid crystal twice, so it can provide high contrast, and the thickness is quite thin, which significantly shortens the response time and greatly reduces the tailing phenomenon.



Compared with LCD, LCOS technology has only one optical surface, so that another plane can be used to configure the drive circuit. And then achieve the product structure of the integrated drive circuit and chip.





Product Details


Resolution 1280*720
Display Material LCOS (Liquid Crystal On Silicon)
Screen Size 0.38"
Quantity Binocular
FOV 38°
Pupil distance
58-68mm
Diopter(Adjustable)
-700°~700°
Exit Pupil
7mm
Eye Relief (Effective)
18mm




Product Features



  • 720P 1280*720 Resolution, Viewing without graininess, clear picture quality and vivid colors.
  • It uses LCOS (Liquid Crystal On Silicon)technology.
  • Large FOV : 38°
  • The user can adjust the interpupillary distance by himself, and can adjust it to the most suitable state for viewing, and adjust it to have no vignetting, and the viewing is more comfortable.
  • The user can adjust the diopter, whether it is farsighted or nearsighted eyes, the adjustment range is -700°~ 700°
  • Suitable for all kinds of VR glasses and head-mounted displays
