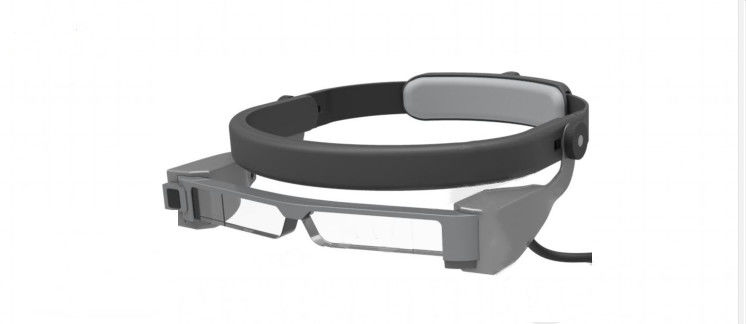

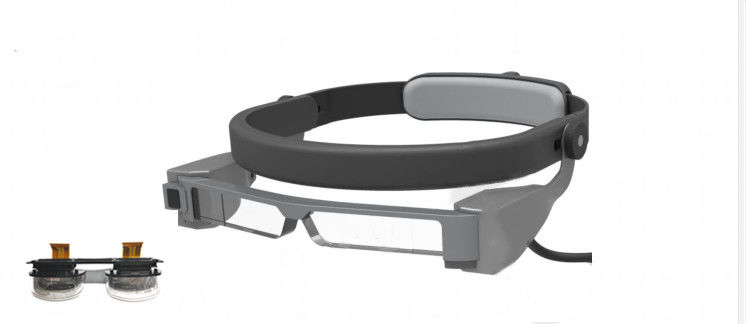

1080P Micro Display Module Sony OLED Screen 0.7" Large FOV For Smart Logistics

1080P Micro Display Module Sony OLED Screen 0.7" Large FOV For Smart Logistics

amoled display module

flexible oled display module

Place of Origin:

Shenzhen,CHINA

Brand Name:

ENMESI

Certification:

CE,FCC,ROHS,CCC

Model Number:

R8

Contact Us
Request A Quote
Product Details
Display Size:
0.7"
Resolution:
1920*1080
Technology:
OLED
Eye Relief:
15mm
Exit Pupil:
8mm
FOV:
51°
Payment & Shipping Terms
Minimum Order Quantity
200pcs
Price
Negotiable
Packaging Details
gift box
Delivery Time
7 work days
Payment Terms
T/T, Western Union etc
Supply Ability
5000pcs/month
Product Description



0.7 Inch 1080P Micro Display Module Sony OLED Display For Smart Logistics





Theare are the following solution:





Smart glasses application service solution -- Smart logistics







Product Description



ECX335SN is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution.







Product Details



Resolution Full-HD 1920*1080
Display Material OLED
Screen Size 0.7"
Quantity 2 screens
FOV 51°
Pupil distance 63mm(Fixed pupil distance)
Eye relief 15mm
Exit pupil 8mm
Brightness 3000 nits
Distortion 0.76% (Pincushion distortion)
Frame Rate 60Hz
Number of colors 24bit (16777K)
Supply voltage +5VDC
Current <200mA
Number of pairs 24bit (16777K)
Size 37mm * 33mm
Weight 9.5g







Product Features





1. Ergonomic modular code scanning integrated design, release hands, no pressure.



2. The whole set of intelligent wearable equipment, hardware material and configuration parameter design, meet the requirements of various            extreme working environments, and have strong one dimension and two-dimensional code scanning performance.



3. Directly transmit logistics and order information data to the eyes through Bluetooth wireless technology, and easily realize visual selection.






1080P Micro Display Module Sony OLED Screen 0.7" Large FOV For Smart Logistics 0





Logistics Picking




  • The head mounted smart glasses of the integrated scanning module will automatically guide the wearer to the pick-up position and reach the corresponding position; at the same time, it has the scanning function, and the functions of the previous PDA can be replaced by glasses, with double efficiency.



  • For pick-up scenarios requiring head up, head down, etc. in high / low position, it can be easily, conveniently and efficiently completed by combining with the ring scanning module.


System Architecture

  • Smart glasses collect local audio or video through camera and microphone, and encode and compress;

1080P Micro Display Module Sony OLED Screen 0.7" Large FOV For Smart Logistics 1

  • The compressed audio or video system passes through theDynamic network transmission to back-end server;



  • The mobile video server receives the audio or video data from the mobile phone, compiles transcoding, outputs video and records video;



  • Mobile phone accesses video publishing service through clientServer browsing live video and on-demand video;  Internet users through browser orClient access video publisherBrowse live and on demand videos.
                                1080P Micro Display Module Sony OLED Screen 0.7" Large FOV For Smart Logistics 2
