Sony 0.7'' OLED Micro Display Module Binocular / Monocular 3000 Nits For Telescope

Sony 0.7'' OLED Micro Display Module Binocular / Monocular 3000 Nits For Telescope

amoled display module

micro oled display module

Place of Origin:

Shenzhen,CHINA

Brand Name:

ENMESI

Certification:

CE,FCC,ROHS,CCC

Model Number:

R8

Contact Us
Request A Quote
Product Details
Resolution:
1920*1080
Screen Size:
OLED 0.7"
Pupil Distance:
63mm(Fixed Pupil Distance)
FOV:
51°
Distortion:
0.76% (Pincushion Distortion)
Drive Board Interface:
TYPE C
Payment & Shipping Terms
Minimum Order Quantity
200pcs
Price
Negotiable
Packaging Details
gift box
Delivery Time
7 work days
Payment Terms
T/T, Western Union etc
Supply Ability
5000pcs/month
Product Description

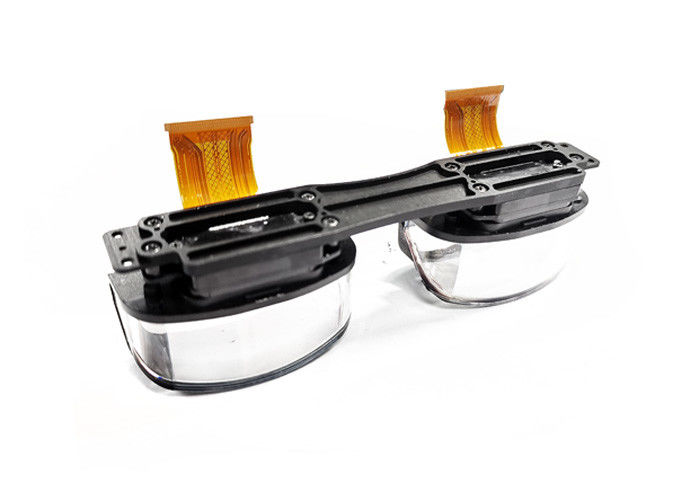

Sony 0.7 Inch Binocular or monocular 3000 Nits 1920* 1080 OLED Micro Display Module For Telescope







Product Details



Resolution Full-HD 1920*1080
Display Material OLED
Screen Size 0.7"
Quantity 2 screens
FOV 51°
Pupil distance 63mm(Fixed pupil distance)
Eye relief 15mm
Exit pupil 8mm
Brightness 3000 nits
Distortion 0.76% (Pincushion distortion)
Frame Rate 60Hz
Number of colors 24bit (16777K)
Supply voltage +5VDC
Current <200mA
Number of pairs 24bit (16777K)
Size 37mm * 33mm
Weight 9.5g







Product Description





  • Main functions: Photo, video, lattice, signal conversion, picture segmentation, 1080P/720P/D1 and other HD video solutions, can support wireless WIFI transmission function.



  • Display specifications from 0.32 inch to 2.5 inch, full size, can be designed and developed according to customer requirements.



  • Drive board interface can be customized, HDMI,TYPE-C,USB and other interfaces.



  • Products can be used in the field: endoscope, aerial model, electronic digital microscope, electronic magnifying glass, medical equipment, instrumentation, security monitoring, video player, projector, security products and other video fields.







Product Characteristics



  • Small Full HD type 0.7 inch display module: 1920(RGB) *1080*2
  • High contrast
  • Wide color reproduction range
  • High-speed response
  • Ergonomic,light and lightweight
  • Power-saving function
  • Up/Down and /or right/left reverse display function
  • Support tracks
  • Elemental structure
  • Distortion: 0.76%

Active matrix color OLED display element with single-crystal silicon transistor on strip drive.







Our Services

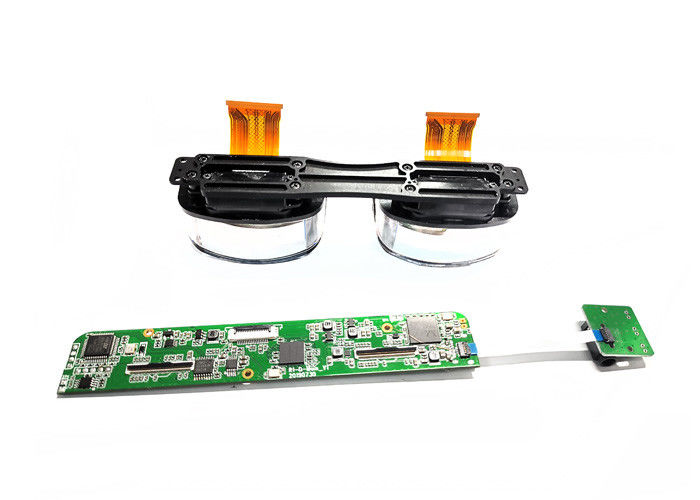

We mainly supply monocular/binocular micro display module (OLED,LCD,LCOS) and drive board.



- Samples can be sent quickly.

- Different models for your reference.

- We provide perfect solution for customers according to your requirement such as the size, the color of the frame.

- We can open new mold for your own design.logo,frame.etc

- Your inquiry related to our products or prices will be replied in 24 hours.

- We will protect your sales area, idea of design and all your private info.

- For our modules,we have 1 year warrenty.

- Small order is welcome.
