HD LCOS Micro Display Module 0.39 Inch 1080P Monocular Large FOV For Industrial HMD

HD LCOS Micro Display Module 0.39 Inch 1080P Monocular Large FOV For Industrial HMD

flexible oled display module

micro oled display module

Place of Origin:

CHINA

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC,CCC

Model Number:

R3

Contact Us
Request A Quote
Product Details
Screen Size:
0.39 Inch
Resolution:
1920X1080
Technology:
Optical Waveguide
Display:
LCOS
Controller Board Interface:
TYPE-C
Transmittance Rate:
>82%
Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
Gift box
Delivery Time
3-7 work days
Payment Terms
Western Union, T/T etc.
Supply Ability
5000pcs/month
Product Description

Micro LCOS Display 0.39 Inch LCOS Module 1080P Monocular Large FOV For Industrial HMD





Product Description

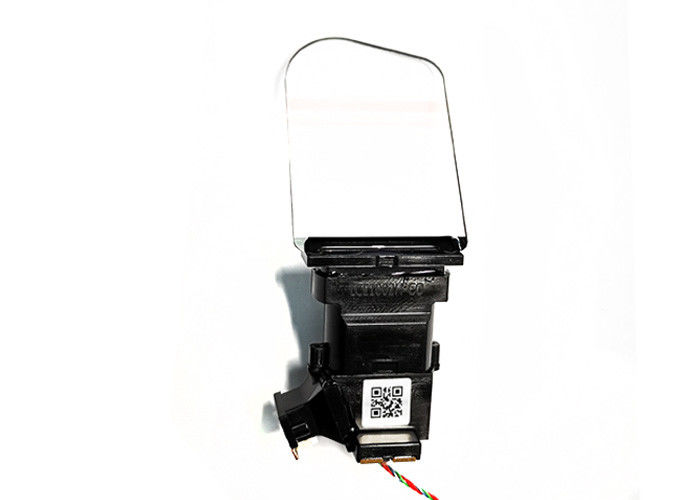

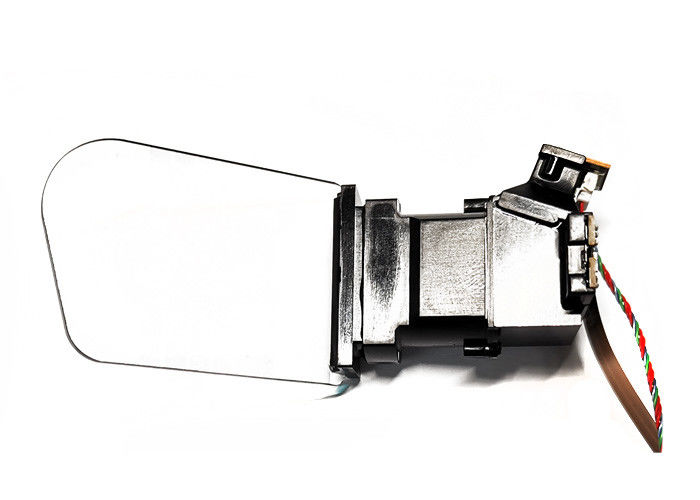

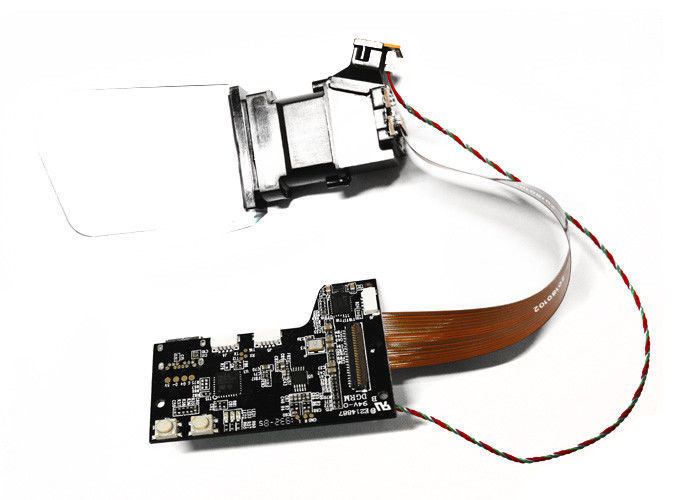

This LCOS display module is composed of a LCOS display screen and a controller board. It has a diagonal 0.39inch size and a 1920*1080 (Full High Definition) resolution.

Controller board can be customized accoring to customer's needs.

Application: HMD, AR/VR glasses, smart glasses,etc.





Product Details



Display Technology Waveguide
Virtula Screen Size

86"(3M)

Resolution 1920X1080
Waveguide Lens Thickness 1.5mm
FOV 40°
Pupil Distance 18mm
Transmittance Rate >82%
LCOS Screen Size 0.39"
Frame Rate 60Hz







LCOS Screen Details



Display Type Reflective type LCOS(Liquid Crystal on Silicon)
Size 0.39"
Resolution 1920X1080
Frame Rate 60Hz
Interface Mode MIPI
Contrast 200:1
Power 350mW
Grey Stage 256
Debugging Method 12C interface debugging





Features



- Small size display with full high definition: 0.39 inch 1920*1080 LCOS micro display.

- High contrast: 200:1

- Low power: 350mW

High transmittance Rate: >82%

- Wide range of color reproduction.

- Using optical waveguide technology.

- This LCOS micro display module has monocular and binocular.



Our Services



We mainly supply monocular/binocular micro display module (OLED,LCD,LCOS)  and drive board.



- Samples can be sent quickly.

- Different models for your reference.

- We provide perfect solution for customers according to your requirement such as the size, the color of the frame.

- We can open new mold for your own design.logo,frame.etc

- Your inquiry related to our products or prices will be replied in 24 hours.

- We will protect your sales area, idea of design and all your private info.

- For our Active shutter glasses,we have 1 year warrenty.

- Small order is welcome.



Our advice:



Please share information as much as possible when you meet a problem in using our products. That will do us a great favor to find a solution.





FAQ



Q1: How long is the sample delivery time?

A: 3-7 working days.



Q2: Do you offer custom solution?

A: Yes, we offer custom solutions. We can design the module or drive board according to your requirements.



Q3: What is your after-sale service?

A: Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty. But we can provide repairment service after your payment.
