High Resolution Quadcopter FPV Video Goggles 48 CH Mini 2.7" HD TFT LCD FPV Glasses

1pcs
MOQ
Negotiable
Price

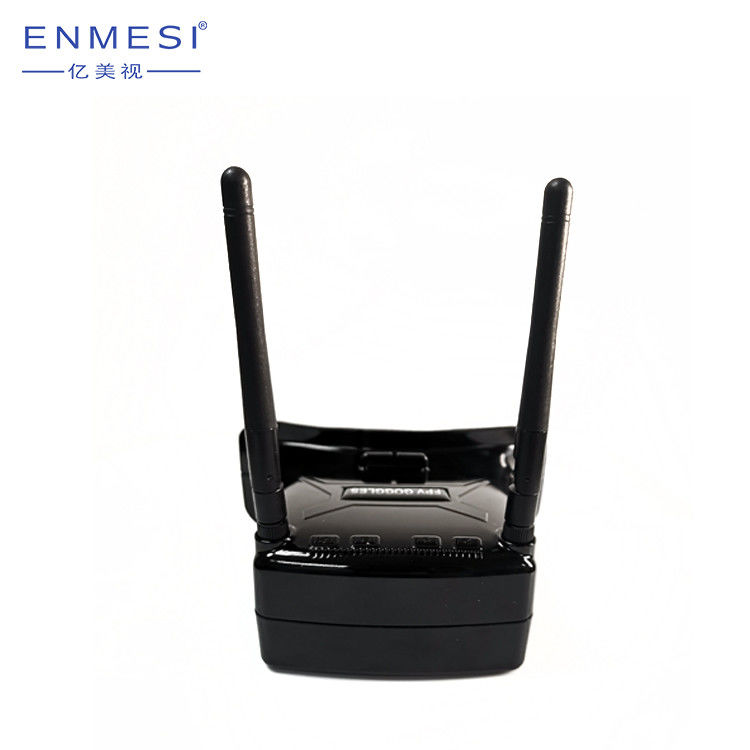

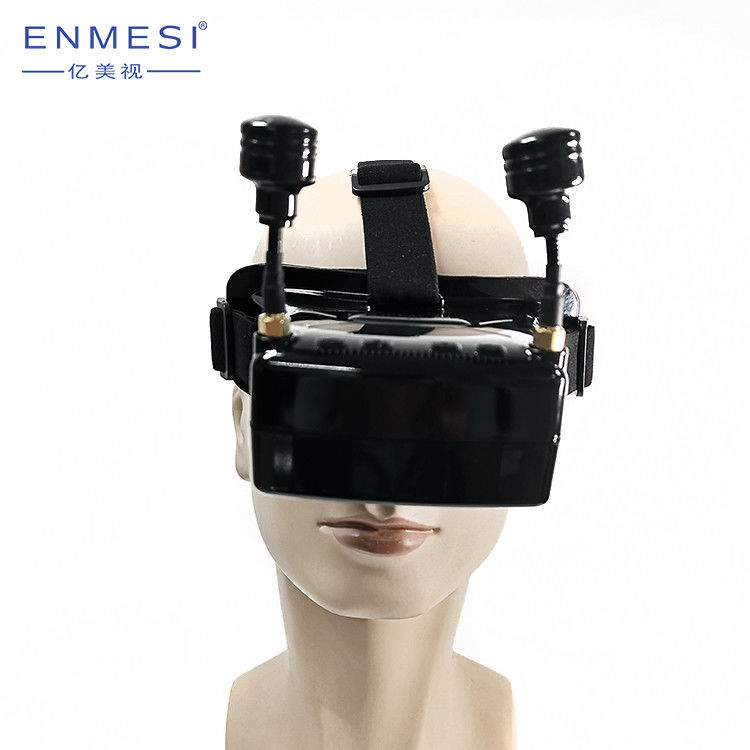

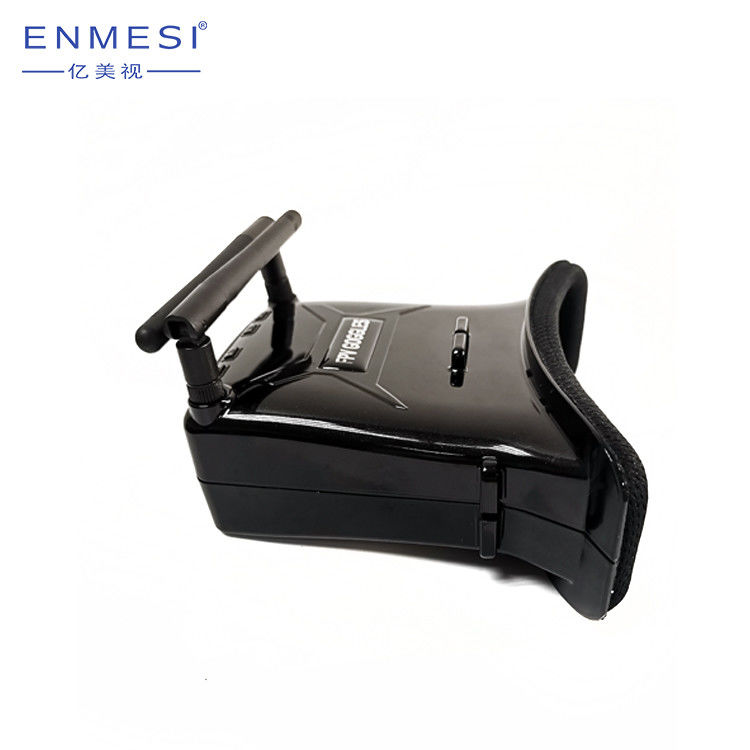

High Resolution Quadcopter FPV Video Goggles 48 CH Mini 2.7" HD TFT LCD FPV Glasses
Features Gallery Product Description Request A Quote
Features
Specifications
Channels: 48 CH
Video Receive: 5.8G
Screen Size: 2.7"
Screen Materials: TFT LCD
Resolution: 960*240
Delay: Less Than 30ms
High Light:

fpv drone and goggles

,

fpv drone and goggles

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: ENMESI
Certification: CE, ROHS, FCC,CCC
Model Number: F4
Payment & Shipping Terms
Packaging Details: gift box packaging.Micro USB cable(1meter), user manual, 2*rod antennas, headband.
Delivery Time: 7 work days
Payment Terms: T/T, Western Union etc
Supply Ability: 10000pcs/month
Product Description

High Resolution Quadcopter FPV Video Goggles 48 CH Mini 2.7" HD TFT LCD FPV Glasses





This FPV drone goggles is a medium sized 2.7" screen with a super bright LCD and 5.8GHz 48CH diversity receiver, built in rechargeable battery. Excellent choice for your FPV goggles, or as a secondary backup screen for your friends to watch. The 300cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeagble battery keeps your FPV grounstation compact and easy to use. Easily watch perfect for outdoor operation. This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.



Product Details


Screen Size 2.7 inch
Material TFT LCD
Resolution 960*240
FOV Field of view: 0/120 degrees (horizontal/vertical)
Power consumption 1.4W in RF mode
Channels 48channels (6 bands *8 channels), support channel auto-searching
Battery 600mAh reachargeable Li-battery




High Resolution Quadcopter FPV Video Goggles 48 CH Mini 2.7" HD TFT LCD FPV Glasses 0





High Resolution Quadcopter FPV Video Goggles 48 CH Mini 2.7" HD TFT LCD FPV Glasses 1 Power switch

●Long press to start when when in shutdown

● Long press to power off when in boot state.

S

Menu/

Automatically

●Click button “S” to bring up Setting menu, and then click again to go to next menu.

● Long press to search channel automatically



B



Bands

●Click button “B” to switch bands between “A,B, C, D, E, F” when in 5.8G mode

● Used as “-“ when in Setting menu



CH



Channel

●Click button “CH” to switch channel between “1,2---8” when in 5.8G mode

● Used as “+“ when in Setting menu

USB USB ● For charging (DC 5V power)





Features


Separable design, 2.7 inch screen can be used as small monitor on radio controller or with tripod
- HD high brightness 2.7 inch TFT specially tuned for FPV racing or Model airplane
- Built-in super sensitiveness 5.8GHz 48CH receiver , especially with RaceBand
- Ergonomic design fit your faces
- Super-wide visible angle up to 82 degree
- Come with advanced auto-searching function ad show you wht working frequency on screen
- 92% transparent lens adopted, no distort, no blur on the adage of screen
- Light weight 145g with 2hour 600mAh battery, RTF for any scale, racing, Model airplane game
- 2.7 inch 960*240 px HD high brightness TFT
- Built-in 3.7V/600mA battery, each full charge revive around 2 hours working time
  if the device is working when charging, please pay attention to selectiong the rated current greater than       2A/5V charging equipment.Battery
  Built-in 3.7V/600mAh high-capacity polymer battery, when the battery is charging , the device the red LED   will light when charging is completed,here are bright green LED,Band and Channel selection.





Our Services

  •  5 years business experience, Classification of quotation,fast accurate.
  • One-stop purchasing service.
  • Sufficient supply in stock.
  • Minimum lead time.
  • Original and authorized agents sources.
  • Timely reply on customer service.
  • 1 year warranty and 100% quality satisfaction Quatantee.





About us





Enmesi is a professional solution provider for FPV glasses integrated solutions in the fields of  drone via 5.8G receiver ,unmanned vehicles,night vision and such other products with 5.8G.



According to the different needs of customers, support for different sizes,specifications customization .Enmesi can provide customers with different solutions for smart glasses, providing OEM and ODM services.



Support for small orders!





Tag: FPV drone goggles, FPV video smart glasses, crossover machines FPV.
